Dahua IPC-HDW2230T-AS-S2 4,250.00৳  Save:749.00৳ (15%)
Share
Dahua IPC-HDW2230T
Dahua IPC-HDW2230T
Dahua IPC-HDW2230T
Compare Wishlist
-15%

Dahua IPC-HDW2230T-AS-S2

in Dahua

4,250.00৳  Save:749.00৳ (15%)

Available in stock

  • 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 2MP (1920 × 1080)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, and the max. illumination distance is 30 m.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire.
  • Abnormality detection: Motion detection, privacy masking, audio abnormity, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Max. 256 G micro SD card; built-in MIC.
  • 12V DC/PoE power supply.
  • IP67 protection.
Compare Wishlist
Brand:
whastapp
Refund and Returns See Details
Delivery within 5-7 working days See Details
Description

Specifications Dahua IPC-HDW2230T

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 [email protected] (Color, 30 IRE)

0.0005 [email protected] (B/W, 30 IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F1.6
3.6 mm: F1.6

Field of View

2.8 mm: Horizontal: 107°; Vertical: 56°; Diagonal: 127°
3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m (144.03 ft)

17.5 m (57.41 ft)

8.8 m (28.87 ft)

4.4 m (14.44 ft)

3.6 mm

58.9 m (193.24 ft)

23.6 m (77.43 ft)

11.8 m (38.71 ft)

5.9 m (19.36 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
1920 × 1080@1–25/30 fps
Sub stream:
704 × 576@1–25 fps
704 × 480@1–30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio abnormality; voltage detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

Basic: 1.8 W (12 V DC); 2.6 W (PoE)

Max. (ICR + H.265 + max. resolution + main stream + IR intensity + DWDR + IVS): 5.5 W (12 V DC); 6.4 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Inner core: Metal
Cover: Plastic

Product Dimensions

100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.56 kg (1.23 lb)

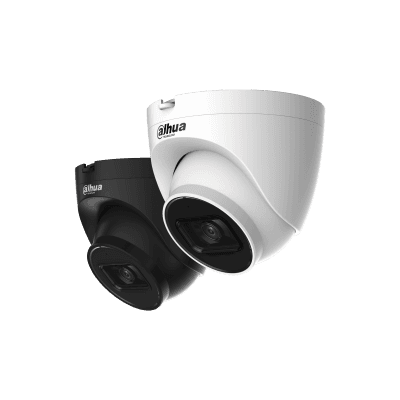

The Dahua IPC-HDW2230T is a high-performance 2MP network camera, designed for a variety of security applications. It is part of Dahua’s Lite Series, offering reliable surveillance with advanced features and smart capabilities.

Dahua IPC-HDW2230T

Image Quality

  • Sensor: 1/2.8″ CMOS, offering clear image capture in both daylight and low-light environments.
  • Resolution: 2MP (1920×1080), providing full high-definition video.
  • Low Light Performance: The camera offers excellent low-light performance with a minimum illumination of 0.005 Lux (color) and 0.0005 Lux (black & white), enabling it to capture details even in dimly lit areas.
  • IR Night Vision: Equipped with IR LEDs, the camera supports infrared lighting for up to 30 meters (98.43 ft), ensuring clear images even in complete darkness.

product-img

Lens and Field of View

  • Lens Options: The camera offers a fixed focal length with options of 2.8mm and 3.6mm lenses.
  • Field of View:
    • 2.8mm lens: Horizontal view of 110°, vertical 59°, and diagonal 132°.
    • 3.6mm lens: Horizontal view of 91°, vertical 48°, and diagonal 109°.
  • Iris: The lens has a fixed aperture of F1.6 for better light intake.

Pan, Tilt, and Rotation

  • Adjustable Pan and Tilt: The camera offers flexibility with a 0°–360° pan, 0°–78° tilt, and a 0°–360° rotation range Dahua IPC-HDW2230T.

Compression and Video Quality

  • Compression Formats: Supports H.265, H.264, H.264B, and MJPEG for efficient video encoding.
  • Smart Codec: The camera supports Smart H.265+ and Smart H.264+ for reduced bandwidth and storage usage while maintaining high video quality Dahua IPC-HDW2230T.
  • Frame Rate: Offers full HD resolution (1920×1080) at up to 30fps, providing smooth video recording and streaming.

Audio

  • Built-in Microphone: The camera is equipped with a built-in microphone for audio capture.
  • Audio Compression: Supports G.711a, G.711Mu, G.726, and AAC formats for flexible audio integration Dahua IPC-HDW2230T.

product-img

Network and Storage

  • Network Protocols: Supports a wide range of protocols, including IPv4/IPv6, HTTP, TCP/IP, RTP, RTSP, and ONVIF (Profile S/G/T).
  • Storage: Has a microSD card slot with support for cards up to 256GB for local storage of video footage.
  • User Access: Supports up to 20 simultaneous users for live view or configuration Dahua IPC-HDW2230T.

Intelligent Features

  • IVS (Intelligent Video Surveillance): Includes features like Tripwire, Intrusion Detection, and Object Left Behind/Removed alerts.
  • Motion Detection: The camera can detect motion within its field of view and trigger alarms or record video based on preset conditions.

Power and Connectivity

  • Power Supply: 12V DC or PoE (Power over Ethernet) for easy installation and flexible power options.
  • Operating Conditions: Designed to operate in temperatures from -30°C to 60°C (-22°F to 140°F), making it suitable for a wide range of environments.

Durability and Build

  • Protection: The camera has an IP67 rating for weatherproofing, meaning it can operate in outdoor environments with protection against dust and rain.

Compatibility

  • Software Compatibility: Works with Dahua’s Smart PSS, DSS, and DMSS management software, as well as ONVIF-compatible systems Dahua IPC-HDW2230T.

Applications:

The Dahua IPC-HDW2230T is ideal for a wide range of surveillance needs, including residential, commercial, and industrial environments. Its high-definition imaging, night vision, and intelligent video features make it suitable for perimeter security, parking lots, entrances, and general surveillance Dahua IPC-HDW2230T.

This camera offers a balance of performance and affordability, making it a solid choice for users seeking reliable, 24/7 security monitoring.
